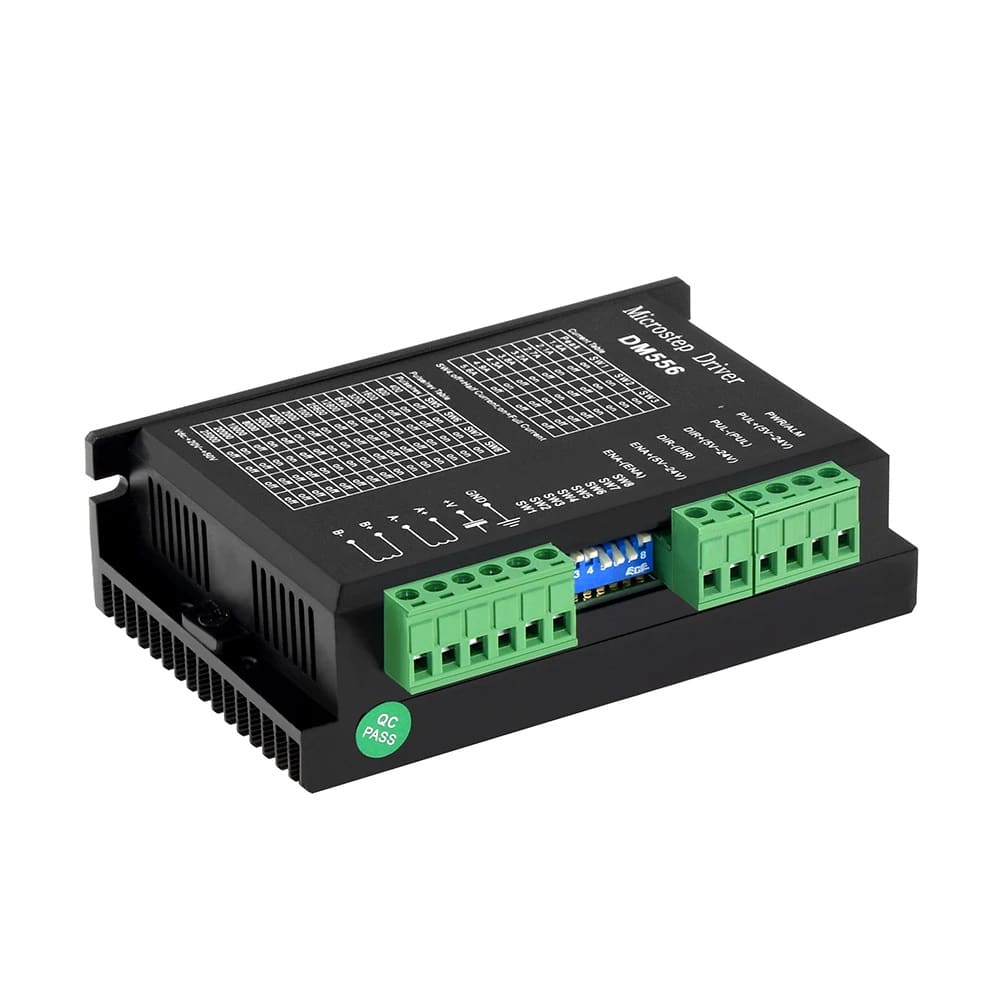

Digital Stepper Motor Driver DM556 5.6A 20-50VDC

Key Features:
  • Brand: TWO TREES Technology Co., Ltd.
  • Power supply: 20-50 VDC
  • Maximum current: 5.6 A
  • Microstep resolution: 400-25600 pulse/rev
  • Input pulse frequency: 0~200kHz
  • Working temperature: 0℃~50℃

24,00

17 in stock
SKU 472-Z-2-7
Brand
Add to wishlist Add to compare

Description

Introduction

DM556 digital stepper motor driver is developed with DSP control algorithm. Compared to analog or TB6600H drivers, it can drive a stepper motor at much lower noise, lower temperature and smoother motion. It is suitable for 4-wire, 6-wire or 8-wire two-phase stepper motor Nema 23, Nema 34 and phase current less than 5.6 A. Drive voltage is from 20VDC to 50VDC.

The driver is intended for use in a non-industrial environment. Recommended for use in an industrial environment Leadshine DM556.

DM556 digital stepper motor driver and its key features:

  • Protection against overvoltage and overcurrent
  • DC power supply 20-50 VDC (36 VDC recommended)
  • Maximum drive current 5.6 A
  • You can set the standby current to half
  • 15 selectable micro step resolutions from 400 to 25600
  • Input pulse frequency up to 200 KHz, TTL compatible and optically isolated input

Data sheet

DM556, Instructions for Use, TWO TREES COMPANY

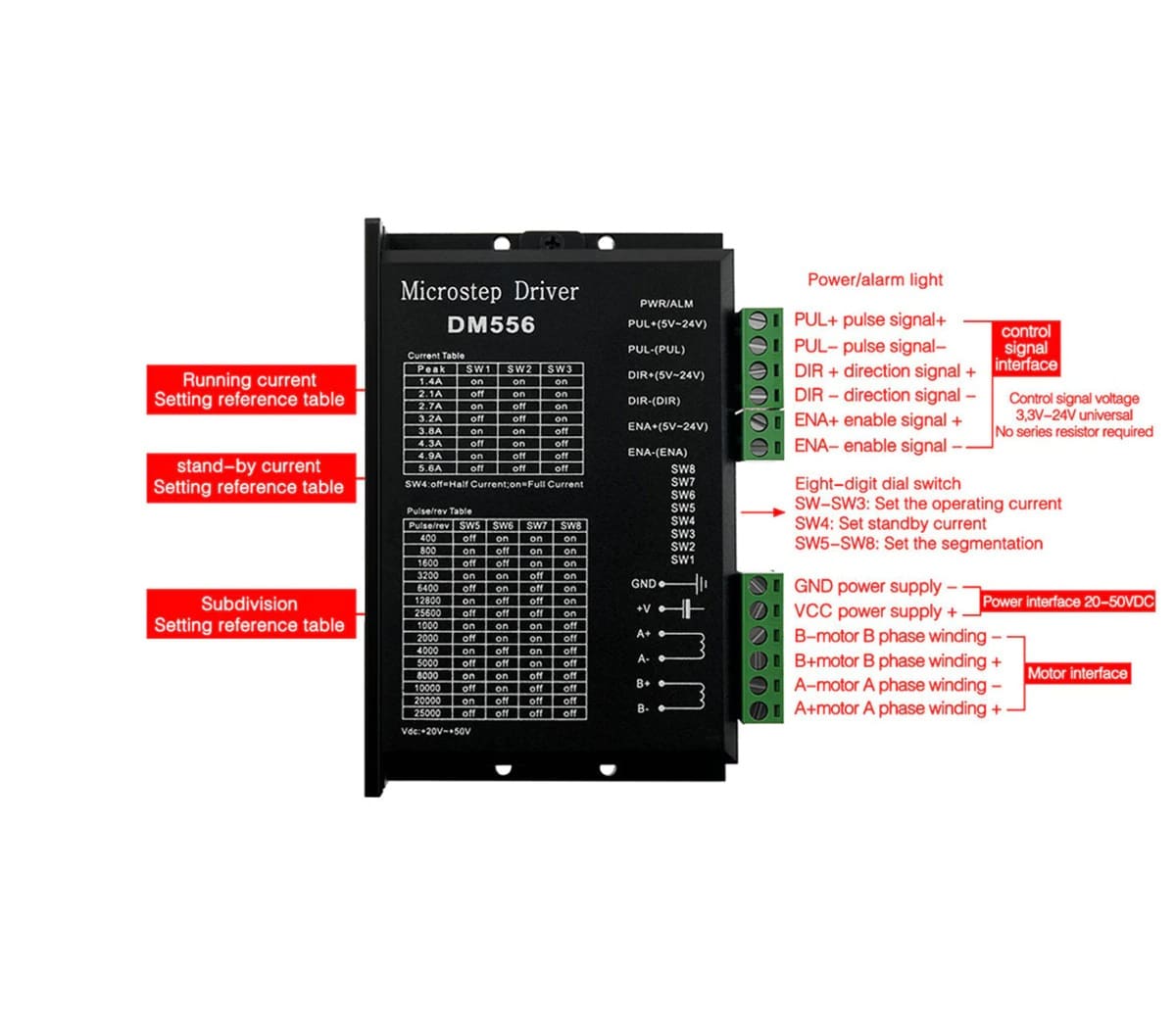

Signal interface details:

The controller's control signals can be active at high or low electrical levels. When the high electrical level is active (common cathode connection), all control negative signals are connected to GND. When the low electrical level is active (common anode connection), all positive control signals are connected to a positive voltage. See the images below for details:

  • Common cathode connection

common cathode stepper motor

  • Common anode connection

common anode common anode stepper motor

You can use a 5 – 24 V controller signal, but make sure the appropriate resistor is used:

Amplitude of the signal External limiting resistor R (see figure above)
5V Without R.
12V 1kΩ
24V 2kΩ

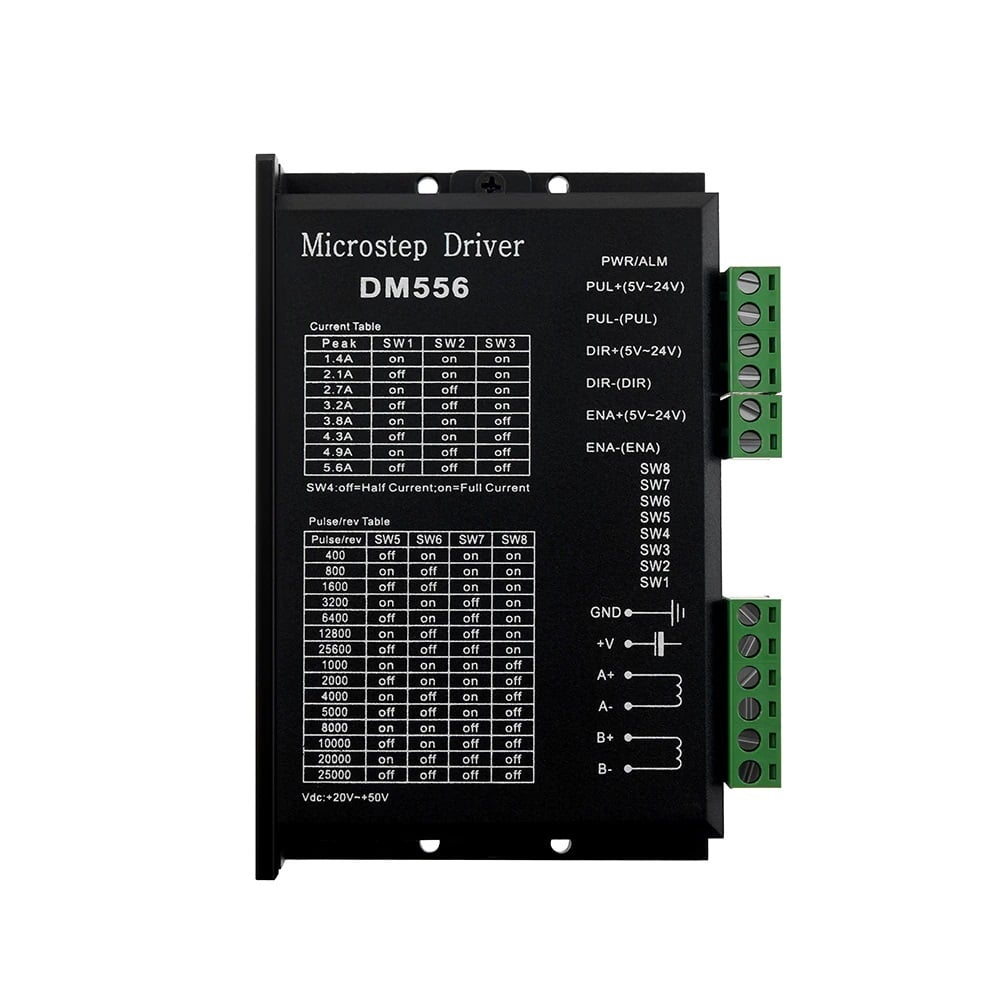

Motor and power supply interface details:

Motor terminals A+ 4 motor wires must be connected. In most cases, these wires are color coded. The color associated with the winding depends on the motor. See engine documentation for details.
A-
B+
B-
Power supply terminals DC + Power supply: 20-50 VDC
DC-



Specifications

Power supply

20-50 VDC

Maximum current

5.6 A

Microstep resolution

400-25600 pulse/rev

Input pulse frequency

0~200kHz

Working temperature

0℃~50℃

Brand

TWO TREES Technology Co., Ltd.
